Fanbase

The engineer's fan selection tool for early-stage design work. Explore pre-configured fan options, compare relevant performance data, and identify a promising starting point for your application.

When you are ready to move forward, our fan specialists will work with you to validate your requirements and define the final fan configuration.

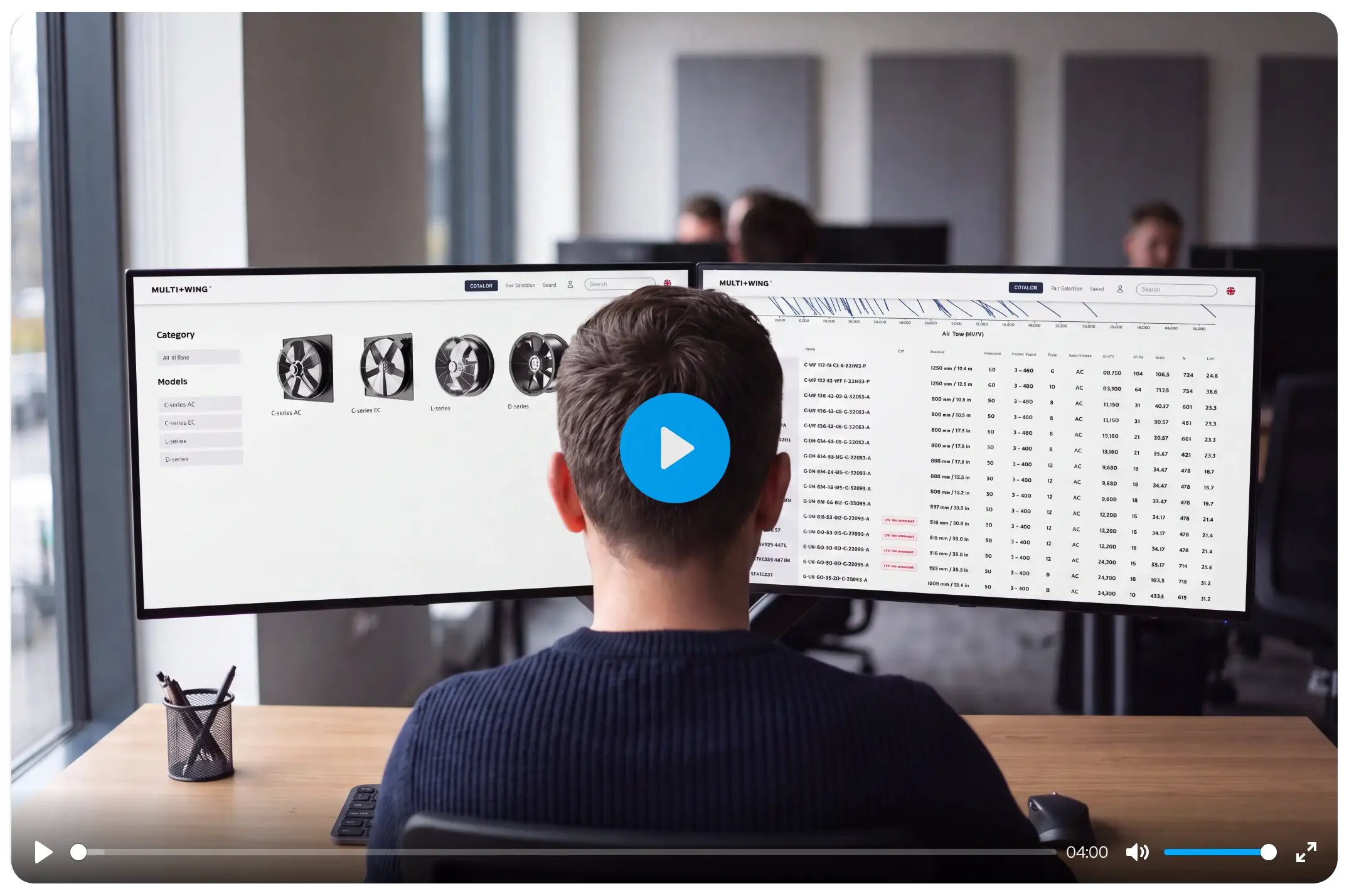

video fanbase preview
Overview Benefits ErP Demo Go to FANBASE
Overview
Explore Fan Options for Your Application
Explore and compare pre-configured Multi-Wing fan options with access to performance data, acoustic information, technical documentation, and compliance resources.
FANBASE gives you access to relevant performance data, acoustic information, technical drawings, electrical documentation, efficiency ratings, and product information to support your early design work.

Whether you are exploring options for a new application, reviewing an initial design direction, assessing changed operating conditions, or finding documentation for an existing installation, FANBASE helps you prepare for a more informed dialogue with Multi-Wing.
icon

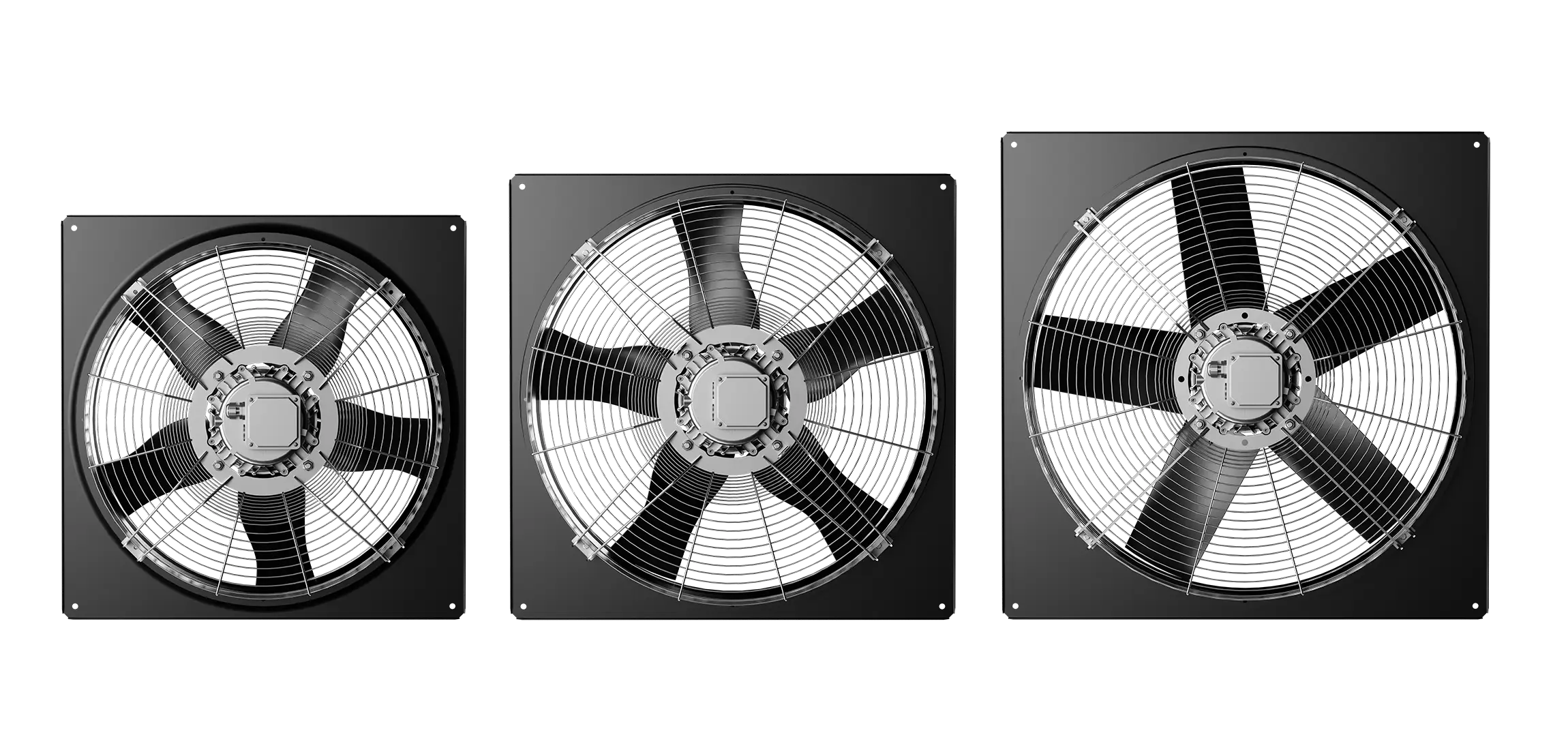

Compare multiple diameters
Evaluate the impact of each pre-configured option on noise, power consumption and installation dimensions.
icon
Make more informed early-stage decisions
Prepare for a discussion with Multi-Wing on performance, compliance, cost, and final configuration.
DCMax
Why use
Fanbase?
1

Explore options earlier
Evaluate duty points and compare pre-configured fan options for early design work.

2

Find a starting point
Compare diameters, power consumption and sound levels to identify a suitable fan direction.

3

Adapt to change
Update operating conditions instantly and assess performance for your preliminary selection.

4

Documentation on demand
Access drawings, wiring diagrams and technical information using a product code or part number.

DCMax
Benefits
Assess Changed Operating Conditions

Project requirements change. If airflow, pressure, or operating conditions are updated during a project, FANBASE helps you assess how these changes may affect your preliminary fan selection.

Simply enter the revised operating conditions and review updated performance data for your preliminary selection.

icon
This supports faster customer responses and a more informed dialog with Multi-Wing during the design process.
DCMax

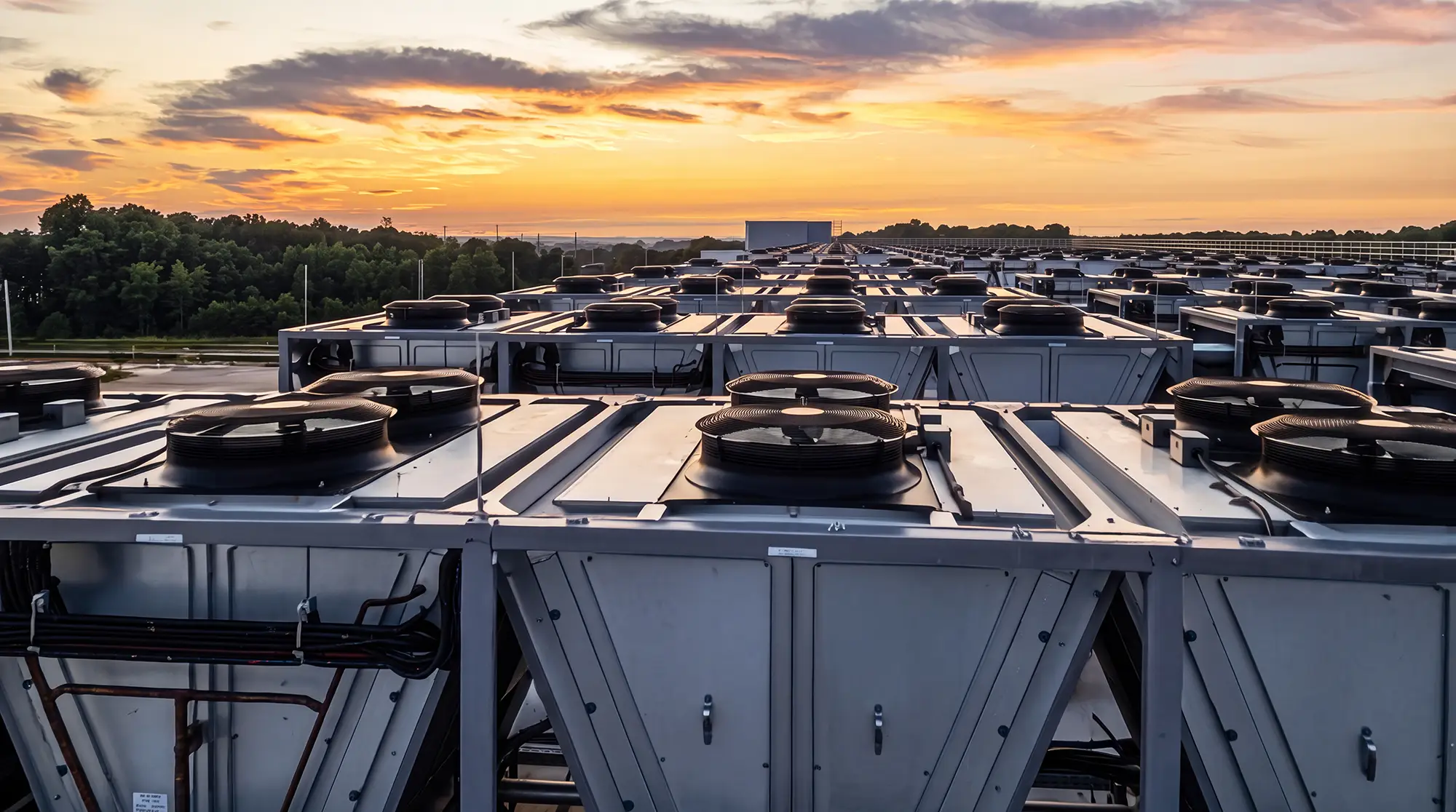

Adapt to Changing Site Conditions

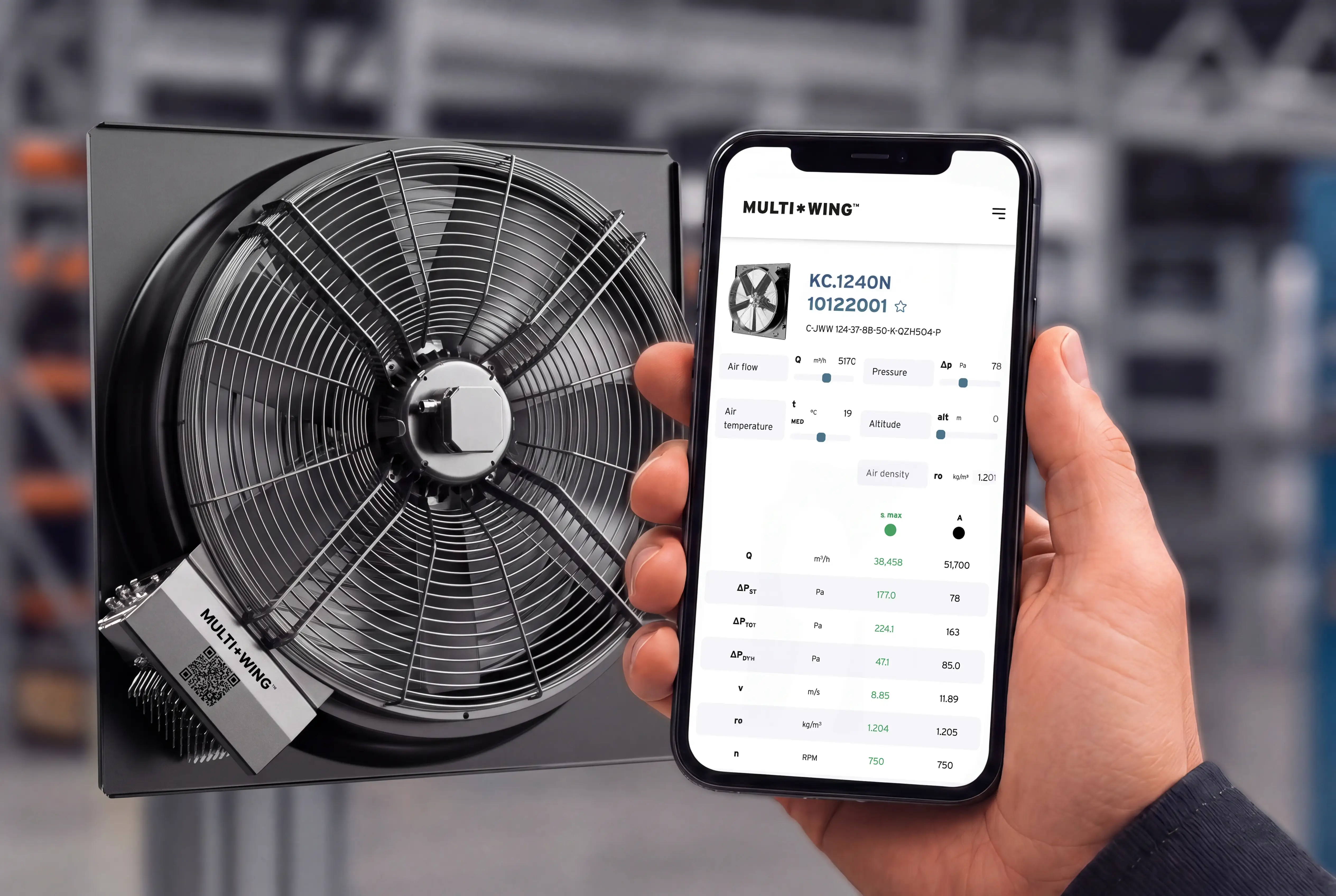

Instant Access to Documentation

Need a wiring diagram, technical drawing or electrical data?

If documentation has been misplaced or a third-party contractor requires information on-site, simply enter the fan part number or product code into FANBASE.

You’ll gain immediate access to the latest available documentation and product information for reference and installed-fan support.

INFORMATION IN SECONDS

  • Product information
  • Technical drawings
  • Wiring diagrams
  • Performance data
  • Accoustic data
  • Electrical specifications
  • Compliance information
Erp 2026
WE HELP ENSURE YOUR ErP 2026 READINESS

ErP 2026 is the industry shorthand for Regulation (EU) 2024/1834, the new European Ecodesign regulation for fans driven by motors with an electric input power between 125 W and 500 kW. It replaces the previous Regulation (EU) 327/2011 (often referred to as ErP 2015).

It raises efficiency requirements, looks at how fans perform across real operating conditions instead of just one point, and brings repairability and lifetime information into focus. In short, it is less about ticking boxes, and more about how fans perform and survive in real life.

WHAT ARE THE NEW EFFICIENCY TARGETS?

The efficiency bar is raised. For axial fans measured in static pressure (categories A and C), the minimum efficiency grade N increases from 40 under ErP 2015 to 50 under ErP 2026. There are specific adjustments for reversible, dual-use, and low-noise fans, but the direction is clear: fans must work harder on less energy.
What does ErP 2026 mean for you?

Under ErP 2026, a fan is defined as a rotary‑bladed machine that uses one or more impellers to maintain a continuous flow of air or gas, and that is made of at least an impeller, a motor and a stator, plus any other significant elements supplied with the fan.

In other words, compliance is assessed at the level of the complete fan product as it is placed on the EU market, not at the level of standalone parts. Components such as impellers or other subassemblies will therefore typically be treated as components of a fan, not as ErP compliant products on their own.

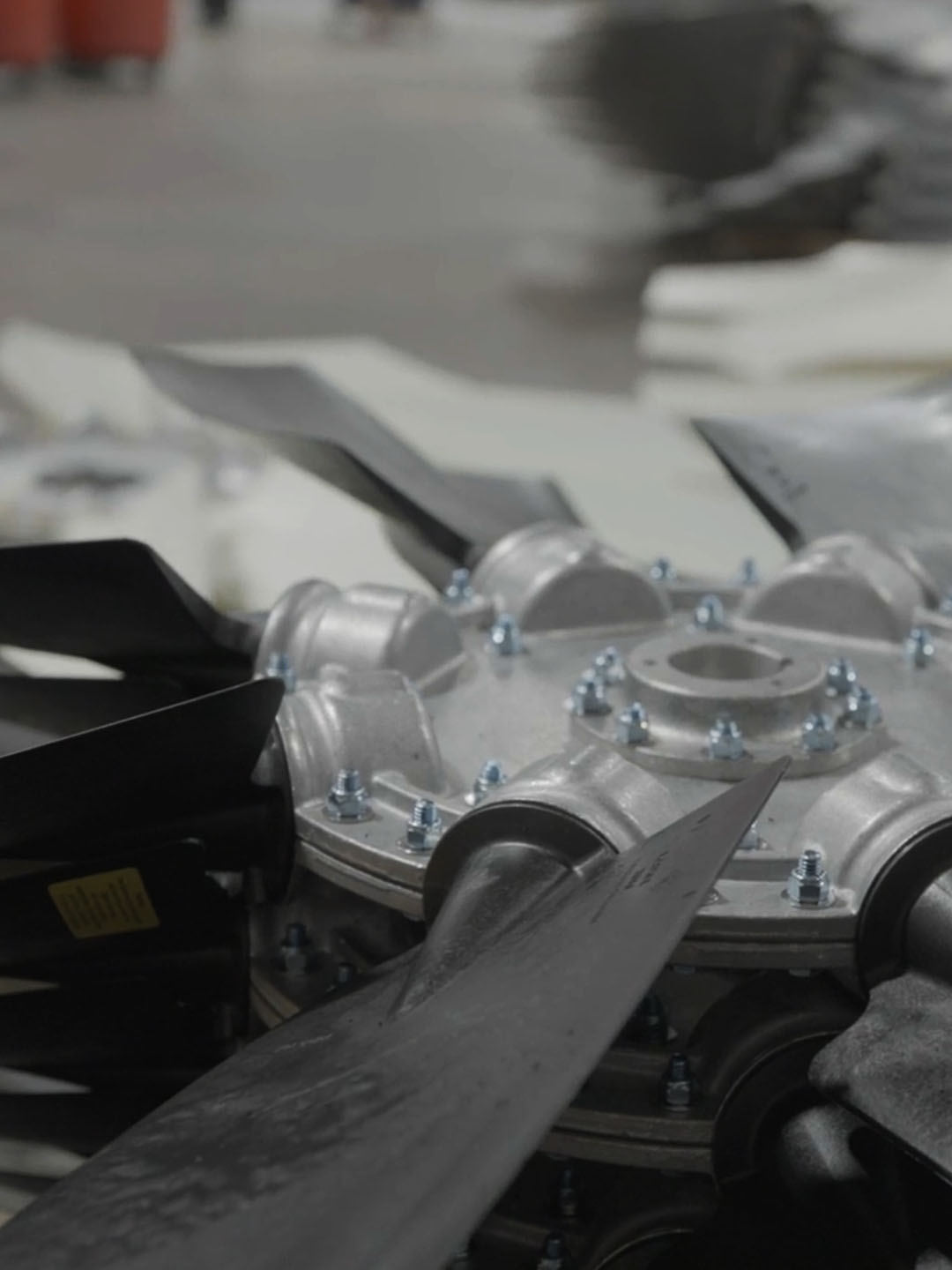

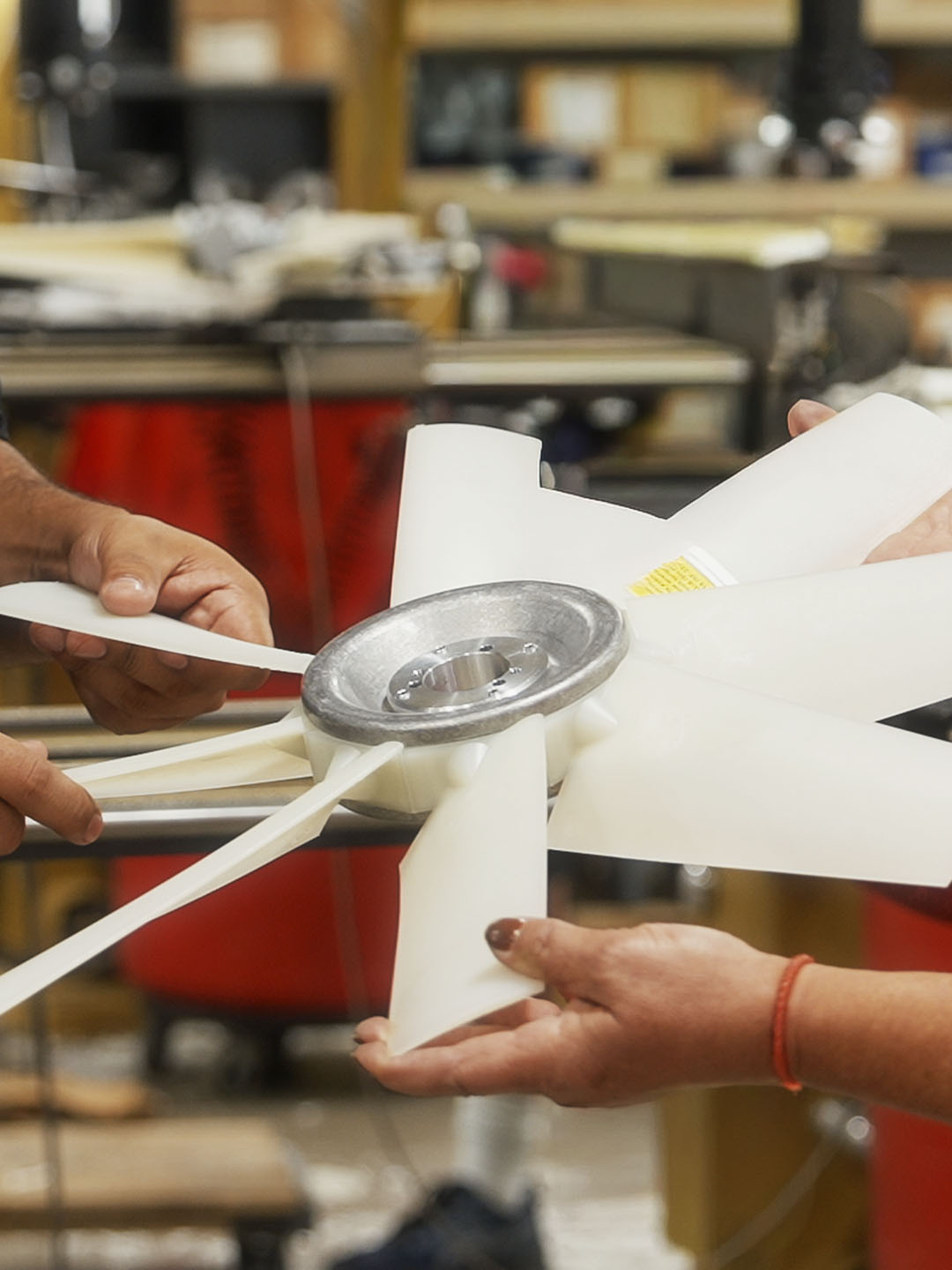

Multi-Wing supplies an impeller
product image
When an incomplete fan is integrated into a device, the integrator is legally considered the fan manufacturer and is therefore responsible for compliance with ErP2026 and CE requirements.

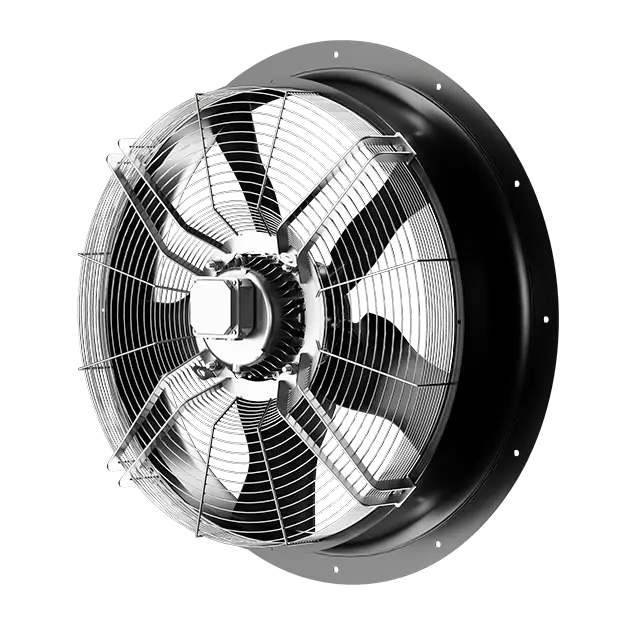

Multi-Wing supplies a fan
product image
When Multi-Wing supplies a complete fan, we confirm that the final fan configuration meets the applicable ErP 2026 and CE requirements.

What's this about repairability?

Among other requirements, fans must be designed for easy disassembly. Allowing key components to be removed using commonly available tools, for the benefit of recycling and material recovery. This is why Multi-Wing’s external EC drive is designed to be easily disassembled from the motor.

Do existing fans need to be replaced?

Fans that have been placed on the market or put into service before 24 July 2026 may continue to be used as part of equipment that was legally placed on the market. They are not required to be replaced on or after that date.

You also do not necessarily need to worry about spare parts or replacements. Annex II of 2024/1834 sets a specific transitional rule for spare part fans that replace fans placed on the market before 24 July 2026 or early-placed models that still follow 327/2011. These spare part fans are exempt from the new minimum efficiency requirements until 24 July 2037.

How can we help you comply?

To comply with ErP 2026, axial fans must now be tested and declared as complete fans, not just based on impeller data.

Previously, compliance could be demonstrated using impeller data from Multi-Wing’s Optimiser and calculating the N-grade via the “non-final assembly method.” Under ErP 2026, this is no longer sufficient. The regulation requires that the complete fan unit is tested, including all significant elements as defined in EN 17166, and that performance is declared at the Best Efficiency Point (BEP).

With FANBASE and our test-based data, you can see axial fans that meet ErP 2026 requirements and document compliance efficiently.

Play the DEMO
Quick contact
metric icon
Metric US
Toggle between Metric and US Customary units to see data in your preferred format.
