DCmax™

Electric axial fans specifically designed for powertrain cooling in Construction, Material Handling and Agricultural machinery
Find out more Download PDF

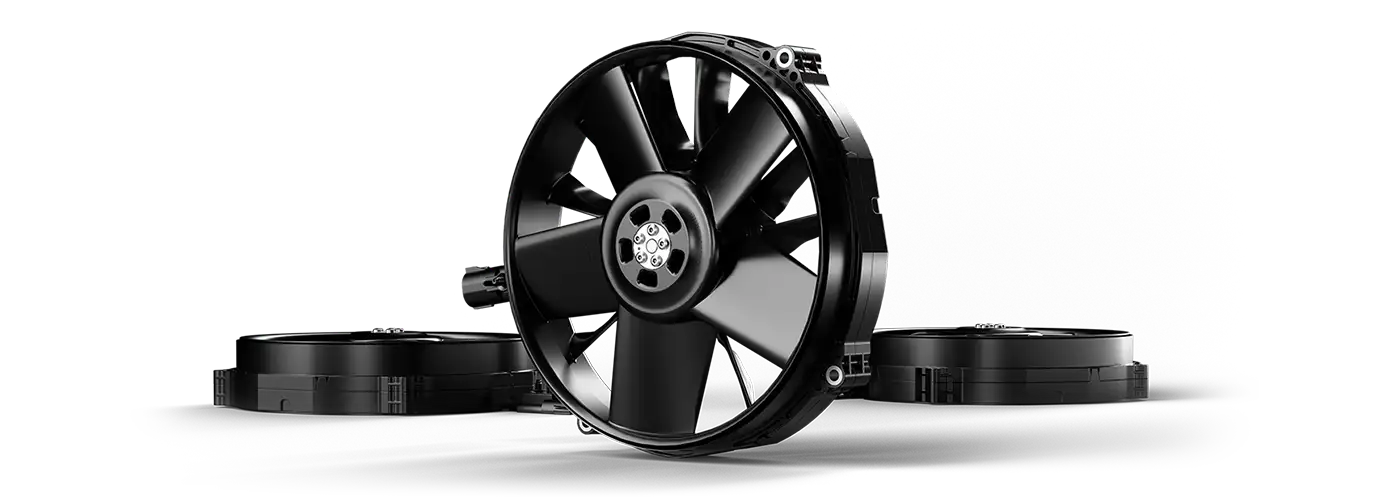

Meet the DCmax™ series

BLDC electric fans

Aerodynamically optimized, energy-efficient electric fans specifically designed for off-highway equipment using various powertrain options such as Internal Combustion Engines (ICE), Fuel Cell engines and Battery powerpacks.

Elevated performance characteristics and ability to tailor to any customer's application design make the DCmax™ a perfect fit for modern powertrain cooling.

Flexible Mounting Options

M6 on BCD 337 mm
M8 on BCD 350 mm

Modular Design Concept

Connector options
Cable length

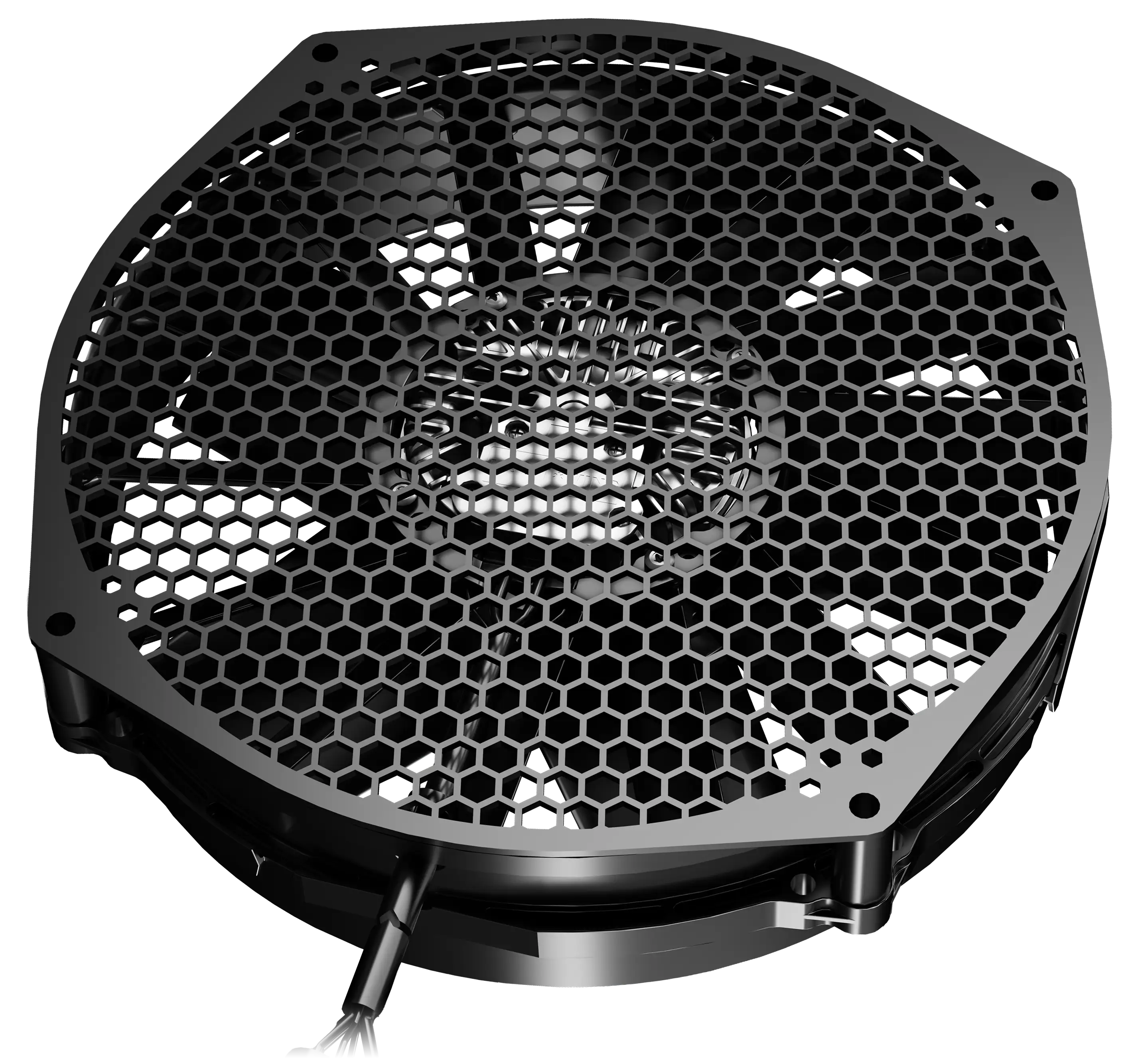

ISO 13857 compliant fan grid

Operating Supply

Voltage 16–32 V

Operating Ambient Temperature

-40 to 110°C
-40 to 230°F

Protection

IP68 and IP6K9K

Design configurations

Pusher
Puller

Reverse run functionality

Yes

Communication

PWM

Performance tailored for Off-Highway

With a broader performance range and elevated pressure capabilities, the DCmax™ fan design specifically addresses the airflow performance challenges facing off-highway vehicles every day.
The numbers speak for themselves: With up to 9% higher airflow volume and up to 16% higher pressure build (benchmarking with other available DC electric fans of the same size), DCmax™ is perfect for applications with challenging thermal management requirements. No matter if you require higher cooling needs or chase better energy-efficiency, DCmax™ will allow you to break new ground.
To make matters even better, DCmax™ fans offer easy integration through customer-specific connectors, harness dimensions and options for ISO-compliant fan guards that ensure seamless integration in any application.

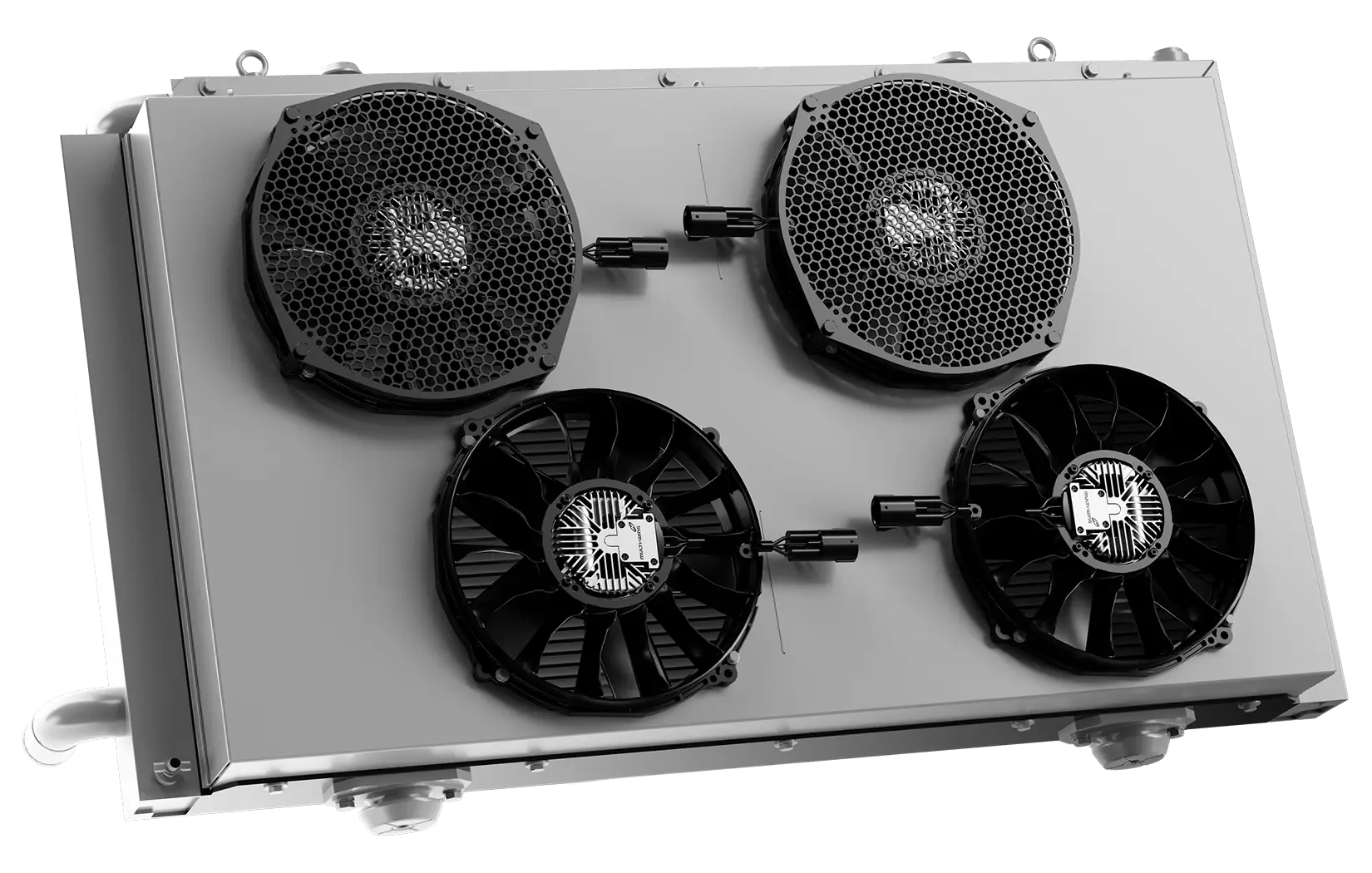

Cooling tower

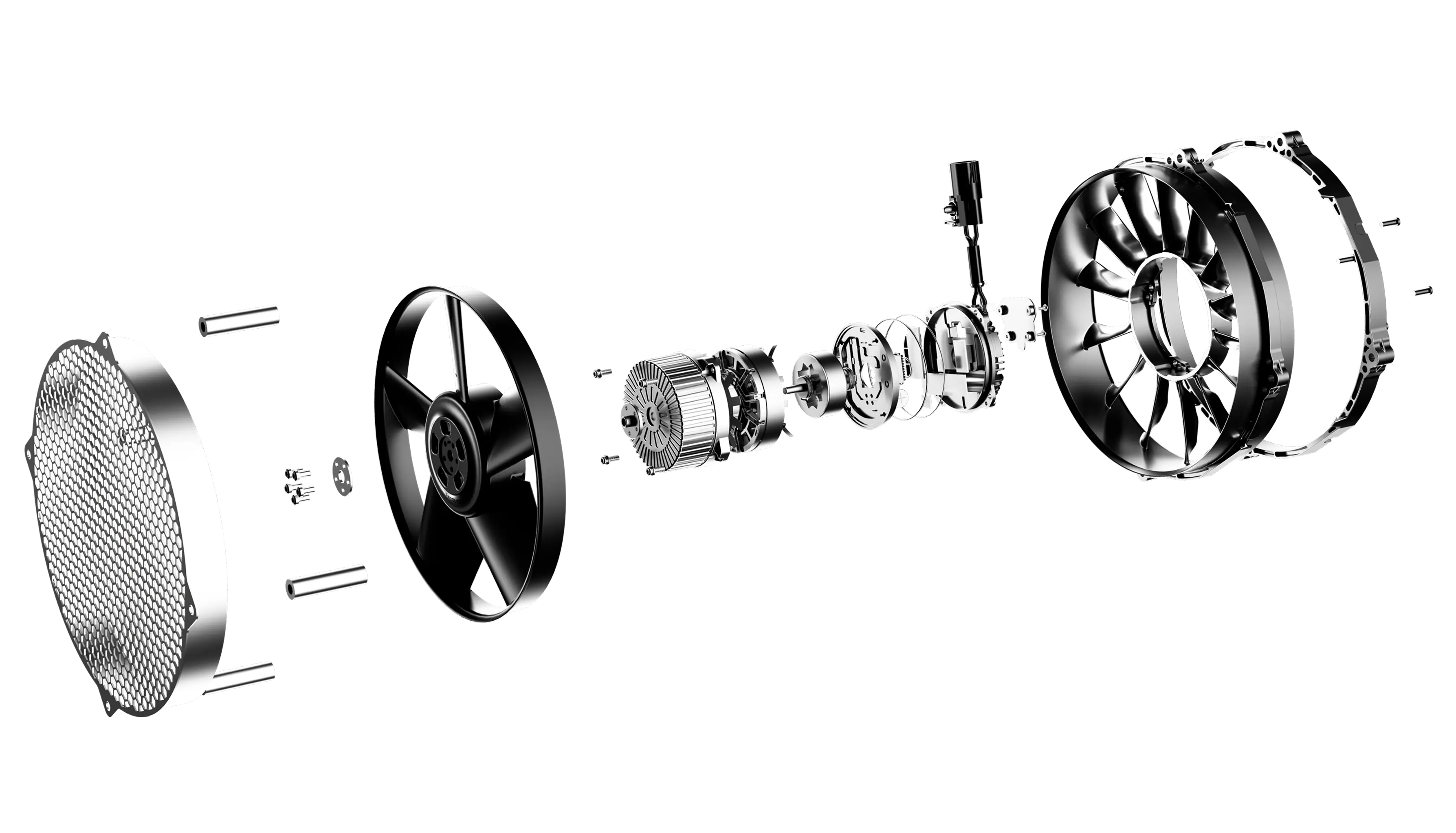

Modular fan design for all powertrain options

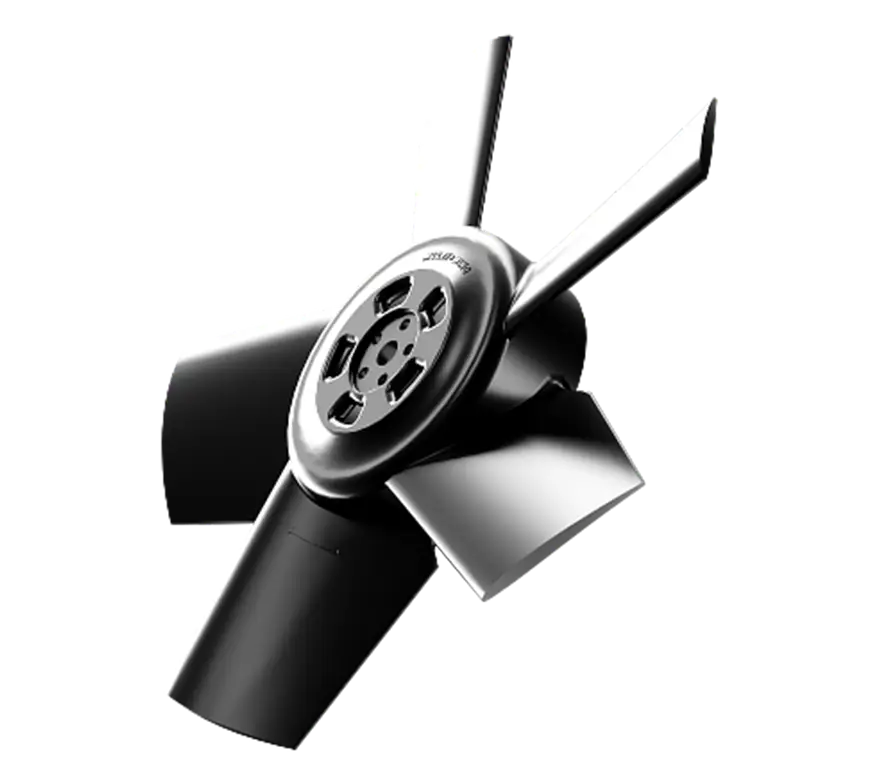

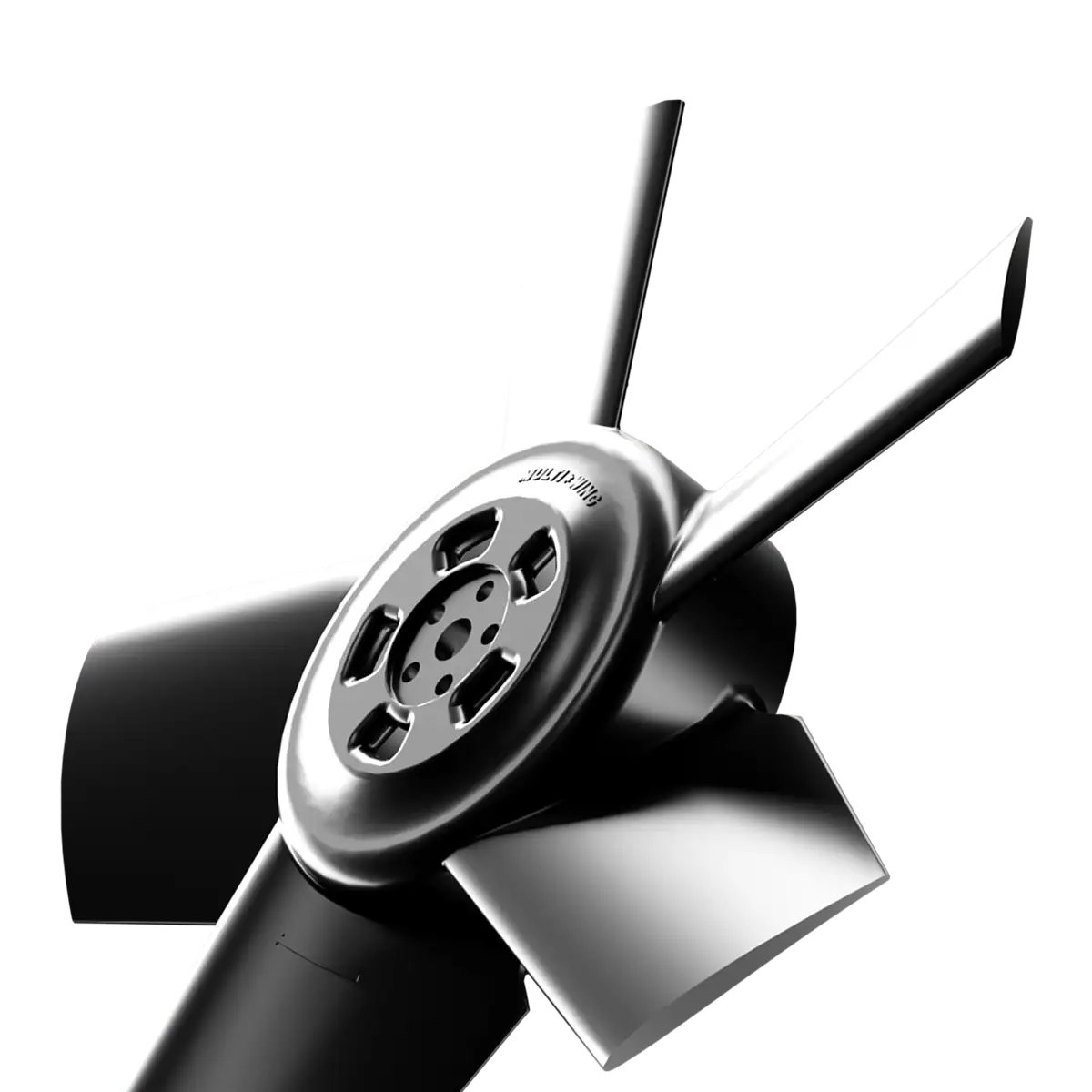

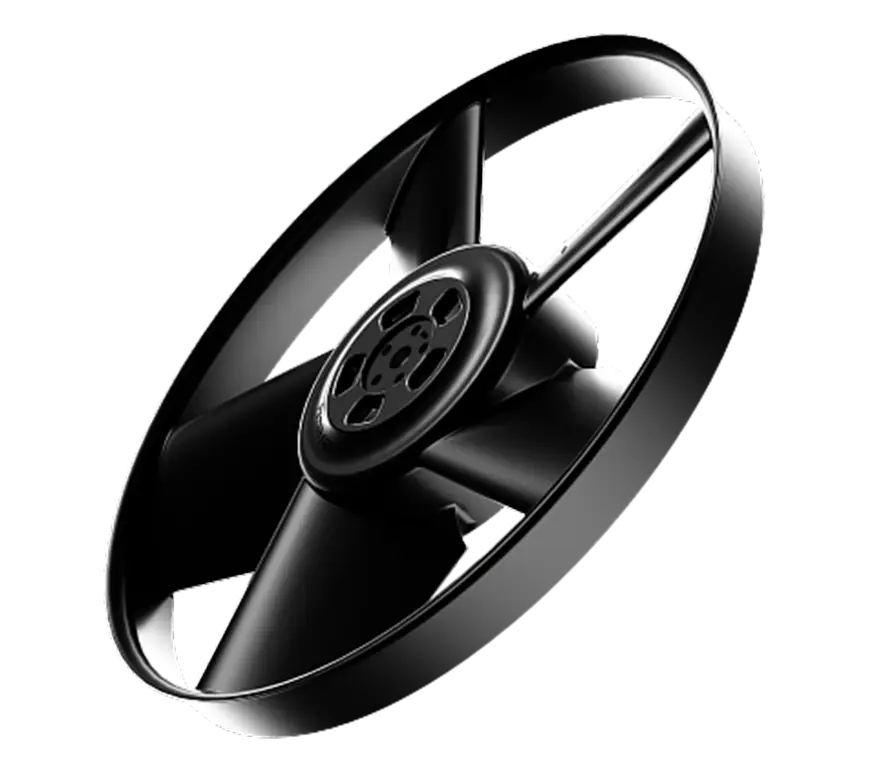

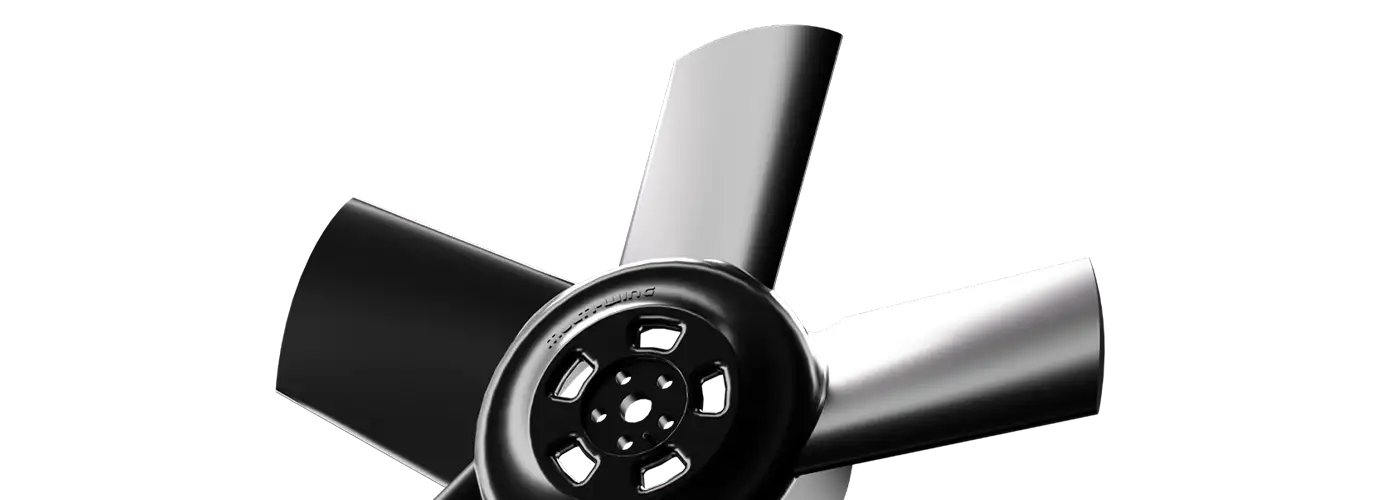

The DCmax™ modular axial fan features optimized blade profiles, designed to meet the specific demands of battery electric powertrains. Available in both puller and pusher configurations, this fan offers several motor configurations for seamless electric integration. The plug-and-play fan guards adhere to ISO 13857 standards for quick and secure installation.
The DCmax312 is capable of solving the air-cooling challenges of various powertrain options thanks to its optimized design and ability of generating additional airflow and pressure performances.

Those Powertrain options will include:
Internal Combustion Engines (Diesel, H₂, HVO, etc.)
Fuel Cells
Battery-electric

DCmax™ applications

Optimal for these and many others
Excavator
Material Handling
Wheel Loader
